G31GCCJL-X1-深圳市智仁科技有限公司

G31GCCJL-X1

Intel G31/G31GC+ICH7 Chipset ,Support LGA 775 CPU ,2*DDR2 ,Integrated Intel GMA 3100 graphics ,1*PCI;1*PCIE x16 ,4*USB2.0 ,2*SATA ,1*IDE

Features
Specifications
Download

Support Core™ 2 Extreme/Core™ 2 Quad/Core™ 2 Duo/Pentium™ D/Celeron™ D

This motherboard supports Intel® LGA775 Core™ 2 Extreme/Core™ 2 Quad/Core™ 2 Duo/Pentium™ D/Celeron™ D processors, which are excellent for multitasking, multimedia, and enthusiastic gamers with 800/533/667 MHz FSB. .

Intel® G31 +ICH7 Chipset

The Intel® G31 Express Chipset is designed to support dual-channel DDR2 800/533, 800/533/667 MHz Front Side Bus (FSB), PCIe 1.1, and mutli-core CPUs. It especially includes Intel® Fast memory bandwidth and reduces the latency of the memory accesses

Dual-Channel DDR2 800/533 support

This motherboard supports DDR2 memory that features data transfer rates of 800/533 MHz

PCI Express Architecture

PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming.

SATA 3Gb/s

This motherboard supports hard drives based on the Serial ATA (SATA) 3Gb/s storage specifications, delivering enhanced scalability and doubling the bus bandwidth for high-speed data saving and retrieval.

USB 2.0

USB2.0 provides up to 480Mbps data transfer rate, supports hot swap, Compatible with USB 2.0 standard,Easy connection to various USB interface devices.

100M/1000M LAN(OPtional)

The on-board LAN controller is a highly integrated 100 Mbit LAN / GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems

Processors	Supports Intel® Core 2 Extreme/Core 2 Quad/Core 2 Duo/Pentium D/Celeron D Series processor in LGA775 package
Chipset	Intel® G31/ G31GC +ICH7 Chipset
Memory support	2 x DDR2 800/533MHz DIMM
Slots	1 x PCIe x16 1 x PCI
Storage	4 x SATA 3Gb/s 1 x IDE
LAN	Realtek Chip, 1 x 100M（Optional 1000M）
Audio	Realtek Chip, ALC 662 6-channel audio
USB	8 x USB 2.0 (6 at back panel, black, 2 at mid-board)

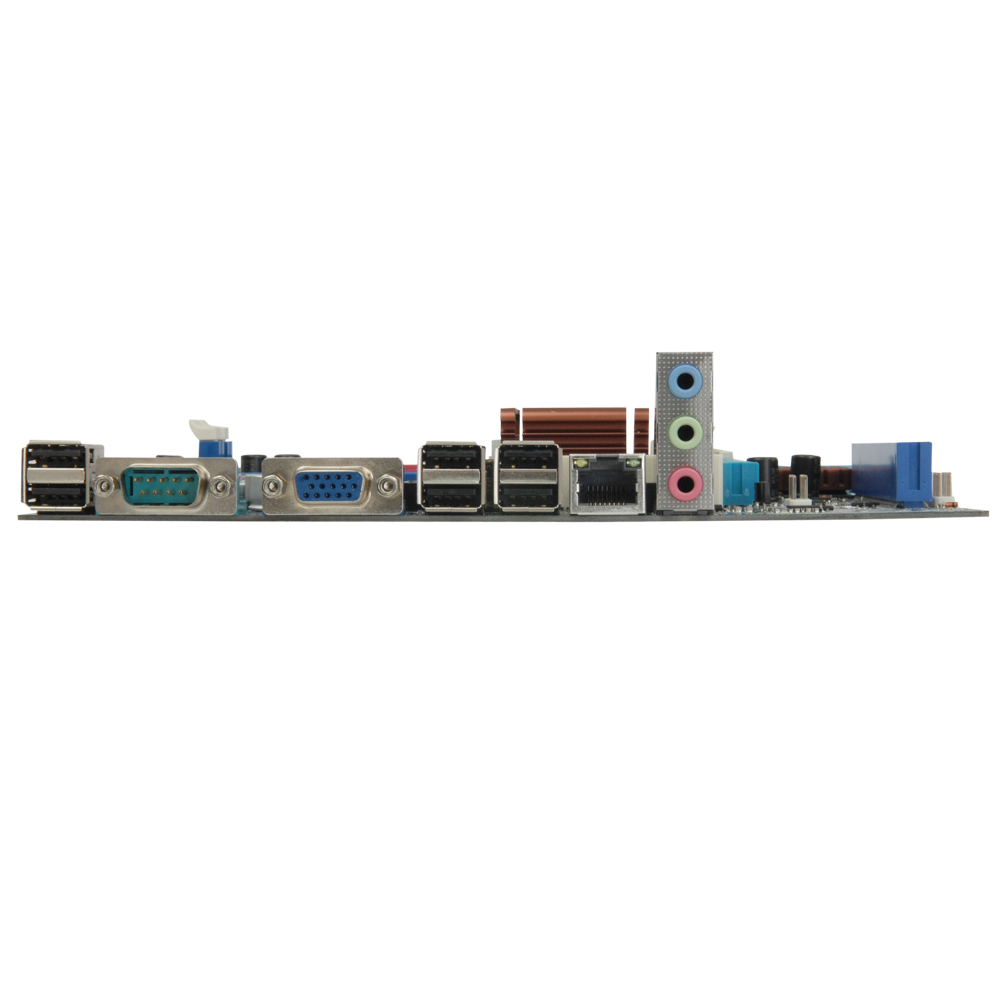

Back Panel I/O	1 x VGA 6 x USB 2.0 1 x LAN (RJ45) 3 x flexible audio jacks
Internet I/O	1 x USB 2.0 connector， supports 2 x USB 2.0 ports 4 x SATA 3Gb/s 1 x 4 -pin CPU_FAN connectors 1 x 24-pin ATX power connector 1 x 4-pin 12V ATX Power connectors 1 x F_Audio connector 1 x Internal Speaker connector 1 x F_Panel connector
Dimension	211 x 168mm

Name	Type	Size	Description
