MP-06
MP-06
MP-06
MP-06
MP-06

Intel Cherry Trail X5-z8350 Processor,1.44-1.92GHz, Qual Core, 4 Thread Processor 2GB DDR3L , SSD, Windows 10

MP-06
MP-06
MP-06
MP-06
Processor

Intel® Atom® Cherry Trail X5-z8350 Processor,1.44-1.92GHz, Qual Core, 4 Thread

GPU Intel® HD Graphics

Memory

DDR3L 2GB

SSD SSD 64G/128G (optional )
Extension Micro SD ,(up to 128GB)
Wireless

802.11 b/g/n/ac  Bluetooth 4.0

LAN

Realtek Chip, 1 x RJ45 100M LAN(Optional 1000M)

Audio Realtek Chip,  6-channel audio
Front IO

1 x Power button

1 x Power LED

2 x USB Ports

1 x IR Port (Optional)

1 x Headset Jack

1 x Mic jack

1 x Micro SD Card Reader

Rear I/O

1 x DC-IN Port

1 x VGA Port

1 x HDMI Port

1 x LAN (RJ45)  Port

2 x USB  Ports

Adapter
5V-2A  Certification

Input: 100-240V AC, 50/60Hz , Output: 5V 2A

Accessories

Wall-Mounted bracket (Non-standard, optionall)

HDMI 80CM&20CM 1.4 (optional)

Adapter5V/2A (optional)

Software OS Support Windows 10

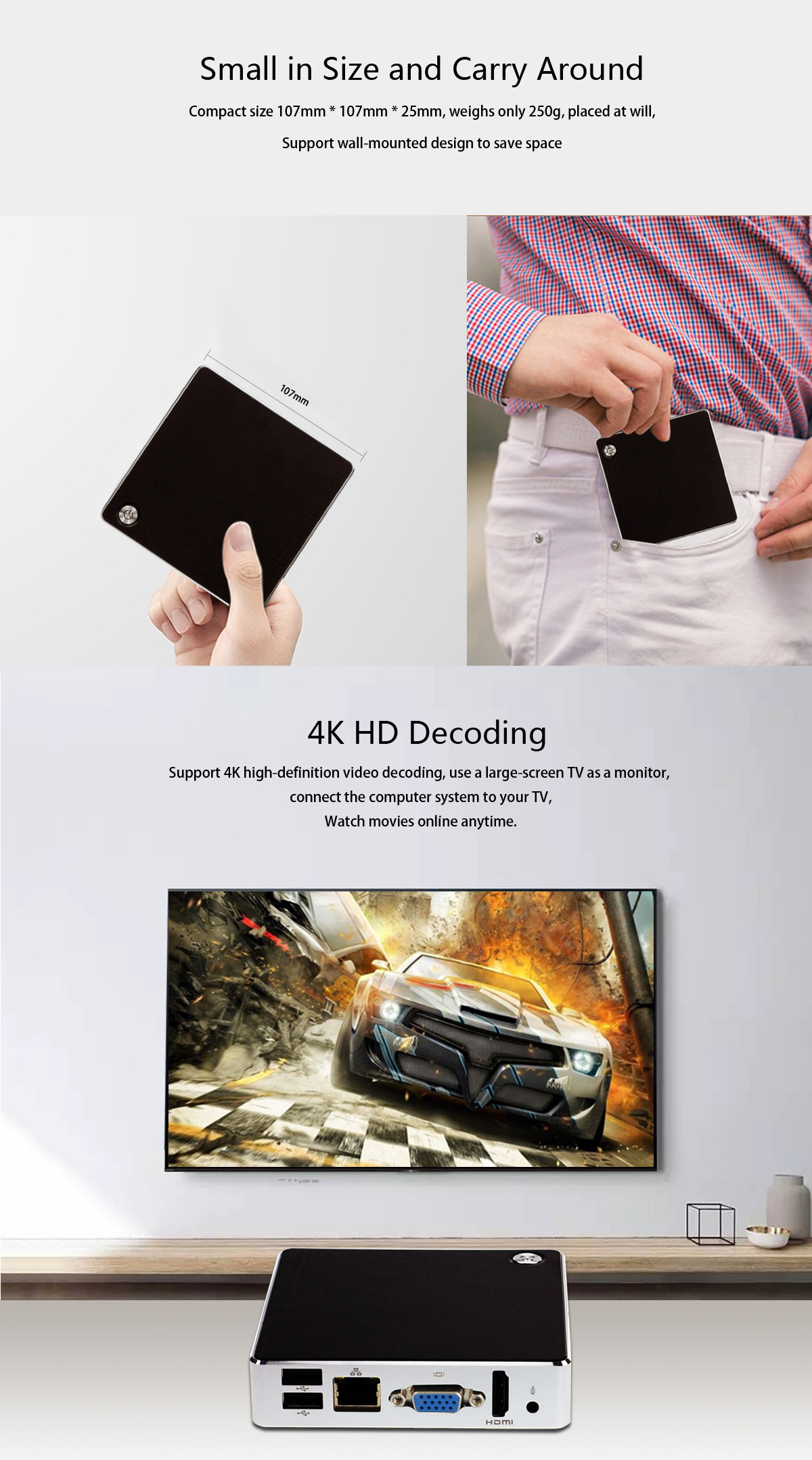

Dimension 107 x 107 x 25 mm, 250g


Name Type Size Description
