A320UAKS
A320UAKS
A320UAKS
A320UAKS

Supports AMD AM4 Socket AMD Ryzen 2nd Gen/Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/Ryzen 1st Gen/7th Gen A-series/Athlon X4 Processors ,DDR4, M.2 Slot

A320UAKS
A320UAKS
A320UAKS
Supports AMD AM4 Socket  Processors

Supports AMD AM4 Socket AMD Ryzen™ 2nd Gen/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors

Supports CPU up to 8 cores


AMD® A320 Chipset
Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU
Dual-Channel DDR4 2133/2400 support
This motherboard supports DDR4 memory that features data transfer rates of 2133/2400 MHz providing great performance for 3D graphics and other memory-demanding applications
PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming.
SATA 3.0
This motherboard supports hard drives based on the Serial ATA (SATA) 3.0 storage specifications, delivering enhanced scalability and doubling the bus bandwidth for high-speed data saving and retrieval.
USB 3.0
USB3.0 provides up to 5Gbps data transfer rate, supports hot swap, Compatible with USB 2.0 standard,Easy connection to various USB interface devices.
100M/1000M LAN(OPtional)
The on-board LAN controller is a highly integrated 100 Mbit LAN / GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems
Processors


Supports AMD AM4 Socket AMD Ryzen™ 2nd Gen/Ryzen™ with Radeon™ Vega Graphics

/Athlon™ with Radeon™ Vega Graphics

/Ryzen™ 1st Generation

/7th Generation A-series/Athlon X4 Processors

Supports CPU up to 8 cores

Chipset AMD® A320

Memory Support

2 * DDR4 2133/2400MHz DIMM

Slots

1 x PCIe x16 3.0/2.0 slot

1 x PCIe x1 2.0 slot

Storage

1 x M.2 Socket, Supports 2260/2280 SSD

4 x SATA 3.0

LAN Realtek Chip, 1 x 1000M/100M(Optional)
Audio Realtek Chip, ALC 662 6-channel audio
USB

6 x USB 3.0  (4 at back panel, black, 2 at mid-board)

4 x USB 2.0  (2 at back panel, black, 2 at mid-board)

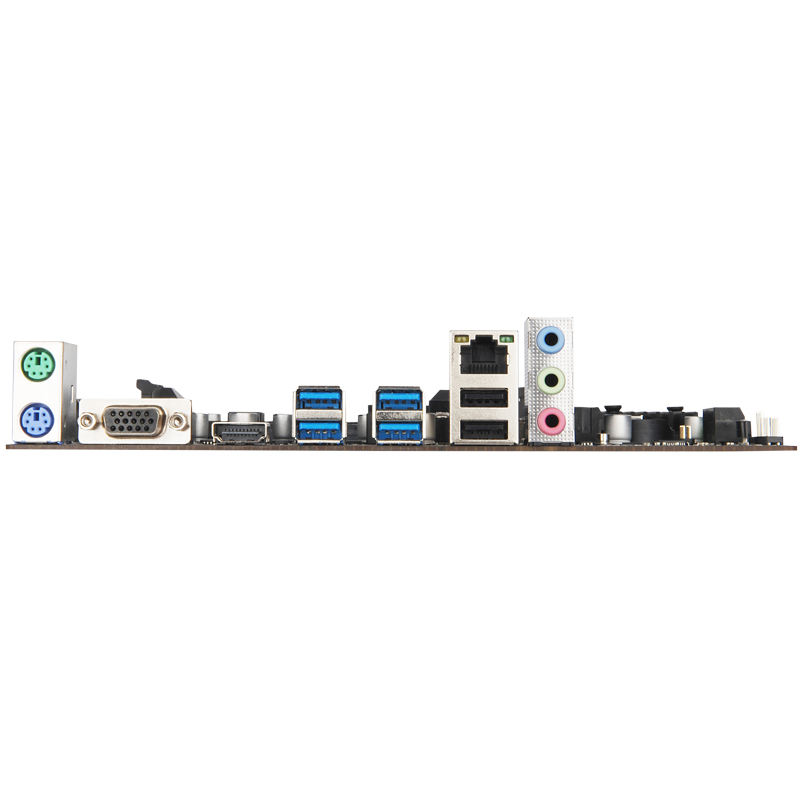

Back Panel I/O

1 x PS2 Keyboard / Mouse

4 x USB 3.0

2 x USB 2.0

1 x HDMI

1 x VGA

1 x LAN (RJ45)

3 x flexible audio jacks

Internal I/O

1 x USB 3.0 connector, supports 2*USB 3.0 ports

1 x USB 2.0 connectors, supports 2*USB 2.0 ports

4 x SATA 3Gb/s Ports

2 x 4 -pin CPU_FAN/SYS_FAN connectors

1 x 24-pin ATX power connector

1 x 4-pin 12V ATX Power connectors

1 x F_Audio connector

1 x Internal Speaker connector

1 x F_Panel  connector

Dimension 215 x 185mm
