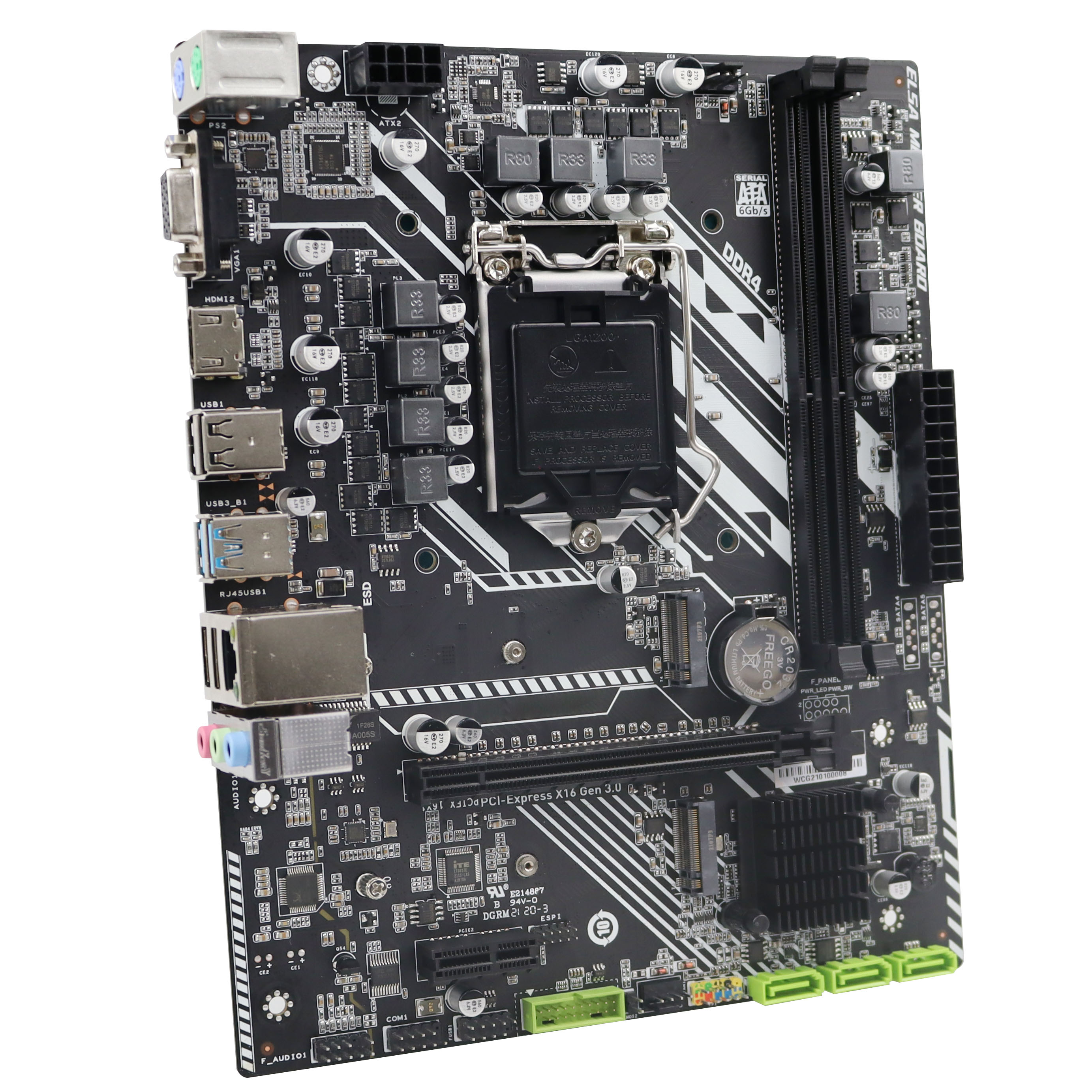

H510DA
H510DA
H510DA
H510DA

Intel H510 Chipset,Intel Socket 1200 for 10th/11th Gen Core i7/ i5/i3 Processors,DDR4,M.2,PCIE-X16 3.0,PCIE-X1 SATA 3.0,USB 3.0

H510DA
H510DA
H510DA

supports intel core inside

READY FOR 10TH GENERATION INTEL CORE LGA1200 PROCESSORS

This motherboard supports 10th Generation Intel® Core™ processors in the LGA1200 package, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (2-DIMM) DDR4 memory and PCI Express 3.0/2.0 lanes for great performance.
Intel® H510 is a single-chipset design
supports 10th Generation Intel® Core™ LGA1200 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability.
M.2 slot
Supports M.2 Slot (Key M), supports 2242/2260/2280 type storage devices
Dual-Channel DDR4  1866/2133/2400MHz support
This motherboard supports DDR4 memory that features data transfer rates of 1866/2133/2400MHz providing great performance for 3D graphics and other memory-demanding applications
PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming.
SATA 6Gb/s
This motherboard supports hard drives based on the Serial ATA (SATA) 6Gb/s storage specifications, delivering enhanced scalability and doubling the bus bandwidth for high-speed data saving and retrieval.
USB 3.0
USB3.0 provides up to 5Gbps data transfer rate, supports hot swap, Compatible with USB 2.0 standard,Easy connection to various USB interface devices.
100M/1000M LAN(OPtional)
Providing high-quality 100M/1000M Ethernet performance to value-oriented consumers, its high-speed, stable features are best suited for today's broadband era
Processor

Support Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset Intel® H510 Chipset

Memory

Support

2 * DDR4 2133/2400MHz DIMM ,

Dual channel memory architecture

Graphic

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI / VGA ports

Slots

1 x PCIe 3.0/2.0 x16 slot

1 x PCIe 3.0/2.0 x1 slot

Storage

2 x M.2 Socket, Supports 2260/2280 SSD

3 x SATA 6Gb/s Ports

LAN Realtek Chip, 1 x 100M(Optional 1000M)
Audio Realtek Chip, ALC 662 6-channel audio
USB 4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board)

6 * USB 2.0 port (4 at back panel, black, 2 at mid-board)

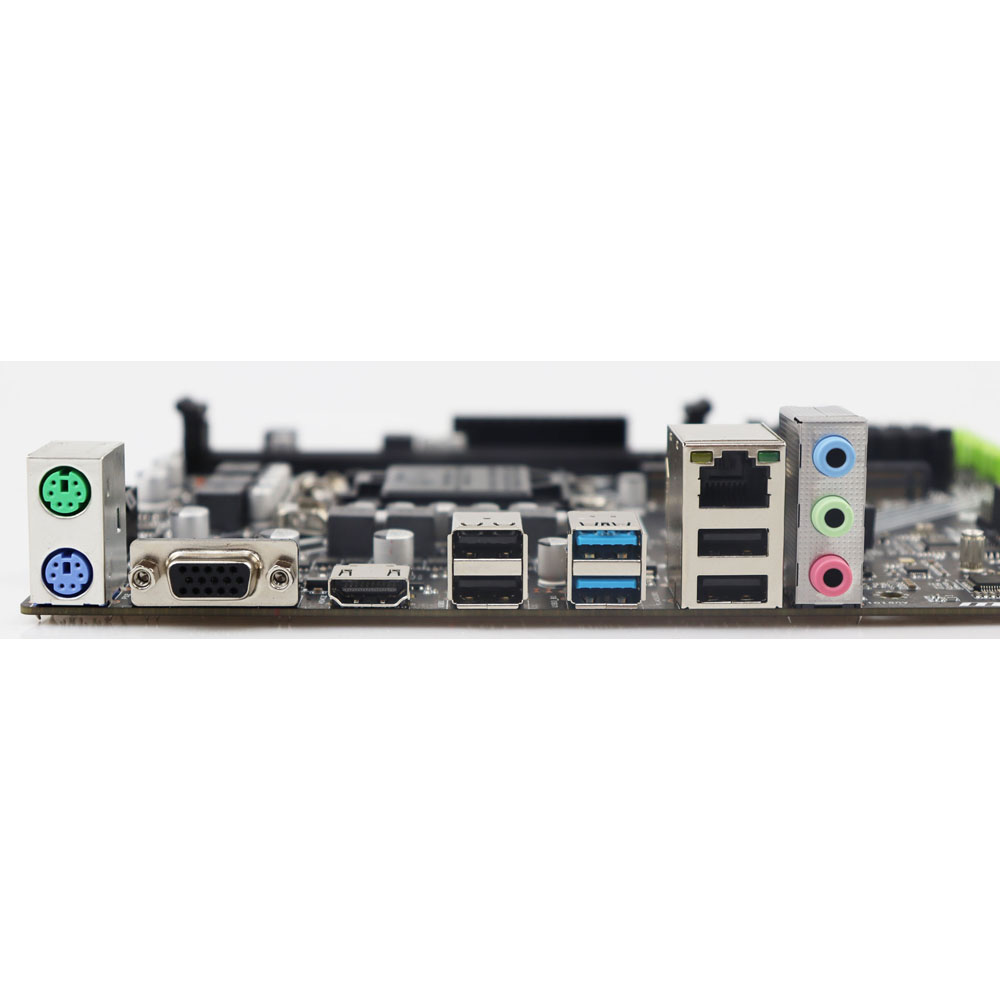

Back Panel I/O

1 x PS2 Keyboard & Mouse Port

1 x VGA Port

1 x HD Port

1 x LAN (RJ45)  Port

2 x USB 3.1 Gen 1 Ports(Blue)

4 x USB 2.0  Ports

3 x flexible audio jacks

Internal I/O

1 x USB 3.1 Gen 1 connector(19pin), supports 2*USB 3.1 Gen 1 ports

1 x USB 2.0 connector, supports 2*USB 2.0 ports

1 x COM connector

1 x DEBUG connector

5 x SATA 6Gb/s Ports

1 x 4 -pin CPU_FAN/SYS_FAN connectors

1 x 24-pin ATX power connector

1 x 8-pin 12V ATX Power connectors

1 x F_Audio connector

1 x Internal Speaker connector

1 x F_Panel  connector

Dimension 220 x 179mm
